Titanium welded tube are made by Titanium Strip with welding type. The Grade of Titanium we can make is GR1 & GR2.

  • GR1 titanium welded tubes are widely used for heating elements and exhaust system or Some place need to bend or forming
  • GR2 titanium welded tubes are commonly used for heat exchangers and condenser

As a leading welded titanium tube manufacturer in China, FD Titanium adheres to strict quality standards to produce titanium tube. We guarantee our tube meet our customer’s requirement.

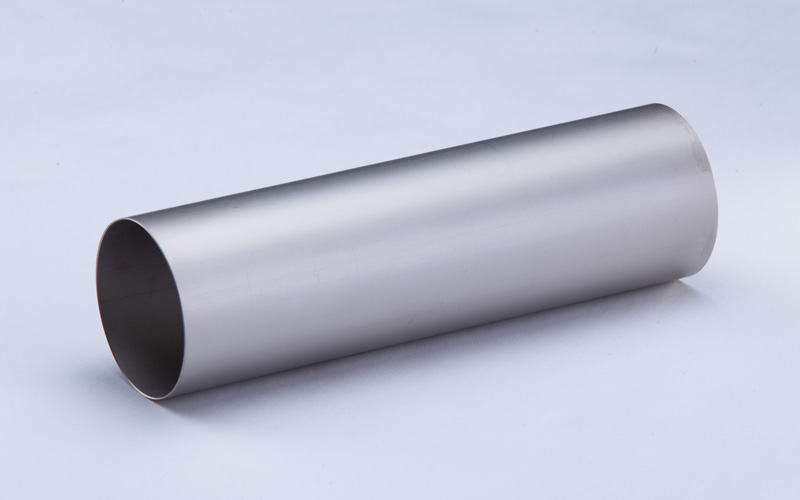

CP Welded Titanium Tube


Specification: ASTM B338, ASTM B337, ASTM B862
Outer Diameter: 6.0mm to 88.9mm
Wall Thickness: 0.3mm to 2.0mm
Length: According to customer’s requirement
Tolerance: ± 0.03mm
Heat treatment: Online bright annealling

Advantage of Titanium Welded Tubes

  • High Precision of Wall Thickness
  • Great Uniform of Wall Thickness
  • Short Lead time
  • Better Price
  • Better Corrosion Performance


  • Heat Exchanger
  • Condenser
  • Sea Water Desalinization
  • Chemicals
  • Automobile Exhaust system
  • Heat Pump

Chemical Composition

GradeFeOHNCResidual eachResidual ttlTi

* all data is % (MAX)

Mechanical Properties

GradeT.S.(MPa)Y.S.(MPa)A% in 50mm
Gr1Min 240138 – 310Min 24
Gr2Min 345275 – 450Min 20

Quality Control

We use the Class A raw material to guarantee our titanium tubes quality. Shaving and boring to control the surface. NDT test (Hydrostatic, Pneumatic, E.T. U.T) to make sure each tube without crack and defect.

Packing Details

Each tube packed by plastic bag and all tubes in strong wooden case. Once the tubes longer than 6 meters. We consider the wooden case with steel frame to protect safe when delivering.

We stock some size of titanium seamless tube in stock for fast deliver and small order requirement. We can custom-made when order more than 50KG.

FDTitanium Tubing Packing
FDTitanium Tubing Packing

How We Work

Should you have special requirements of titanium tubes or any question you have. Please send us an email or give us a call to discuss the details with our representative.

After analyzing your requirement details, we will present you with the final offer.

We also offer free samples on request. We guarantee to provide the moderate price and good quality titanium products.
