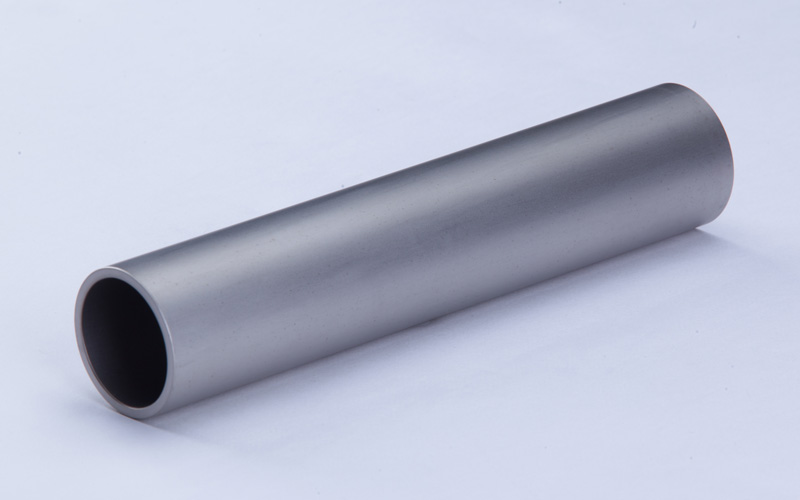

ASTM B338. Gr2 titanium seamless tube has moderate strength and good could forming characteristics, also has good welding properties and corrosion and oxidation corrosion. It is widely used in heat exchanger, condenser, water treatment, desalination, evaporator and pipelines etc.
As a leading CP seamless titanium tube manufacturer, FD Titanium adheres to strict quality standards to produce titanium tube. We guarantee our tube meet our customer’s requirement.
Application of CP Seamless Titanium Tube
CP titanium tubes are widely used in:

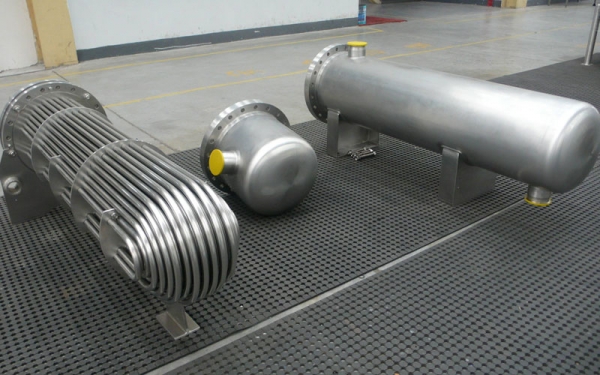

- Heat exchanger
- Condenser
- Water treatment
- Desalination
- Evaporator
- Heat pump for swimming pool
- Exguast system
- Pipelines

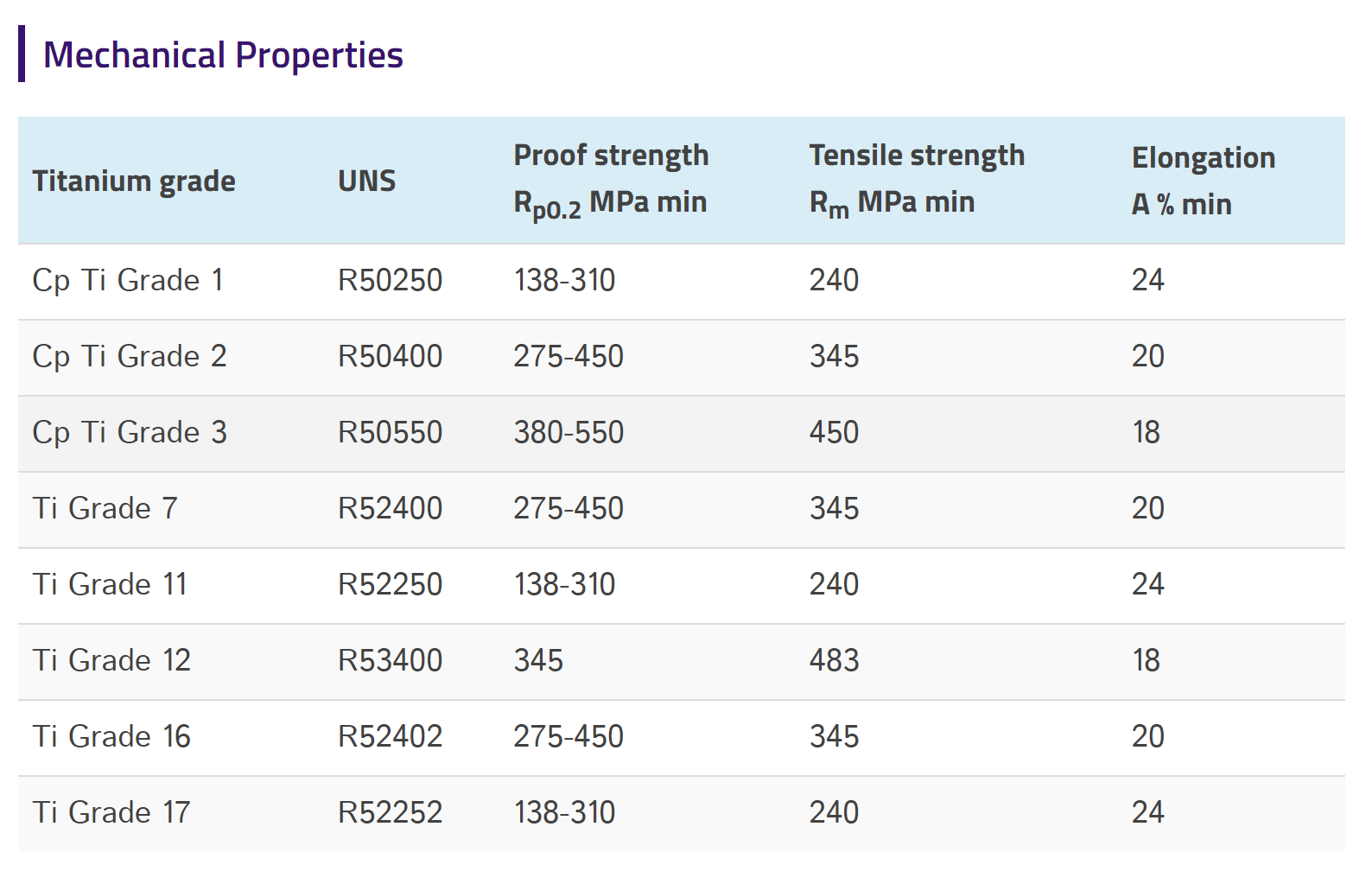

Mechanical Properties
| Titanium grade | UNS | Proof strength Rp0.2 MPa min | Tensile strength Rm MPa min | Elongation A % min |
|---|---|---|---|---|
| Cp Ti Grade 1 | R50250 | 138-310 | 240 | 24 |
| Cp Ti Grade 2 | R50400 | 275-450 | 345 | 20 |
| Cp Ti Grade 3 | R50550 | 380-550 | 450 | 18 |
| Ti Grade 7 | R52400 | 275-450 | 345 | 20 |
| Ti Grade 11 | R52250 | 138-310 | 240 | 24 |
| Ti Grade 12 | R53400 | 345 | 483 | 18 |
| Ti Grade 16 | R52402 | 275-450 | 345 | 20 |
| Ti Grade 17 | R52252 | 138-310 | 240 | 24 |
Grades Comparison Table
| Grade | UNS | ASTM/ASME | W.Nr. | AFNOR |
|---|---|---|---|---|
| CP 1 Titanium | R50250 | Grade 1 | W.Nr. 3.7025 | T-35 |
| CP 2 Titanium | R50400 | Grade 2 | W.Nr. 3.7035 | T-40 |
| CP 3 Titanium | R50550 | Grade 3 | W.Nr. 3.7055 | T-50 |
| High Pd Titanium | R52400 | Grade 7 | W.Nr. 3.7235 | - |
| High Pd Titanium | R52250 | Grade 11 | W.Nr. 3.7225 | - |
| Titanium-Mo-Ni | R53400 | Grade 12 | W.Nr. 3.7105 | - |
| Low Pd Titanium | R52402 | Grade 16 | - | - |
| Low Pd Titanium | R52252 | Grade 17 | - | - |
GR1: Relatively low-strength and high-ductility pure titanium
GR2: Medium-strength pure titanium
GR3: High strength pure titanium
GR7: Medium-strength titanium plus 0.12-0.25% Pd for enhanced corrosion properties
GR11: Low-strength titanium plus 0.12-0.25% Pd for enhanced corrosion properties
GR12: High-strength titanium alloy plus 0.3% Mo and 0.8% Ni for enhanced corrosion properties
GR16: Medium-strength titanium plus 0.04-0.08% Pd for enhanced corrosion properties
GR17: Low-strength titanium plus 0.04-0.08% Pd for enhanced corrosion properties
Specifications
Standard: ASTM B338, ASTM B861
Grade: CP1, CP2, CP3, GR7, GR11, GR12, GR16, GR17
Outer diameter Range: 6mm ~ 250mm
Thickness Range: 0.5mm ~ 20mm
Length: Not exceed 15 Meters
Condition: Full Annealled
Tolerance Control: OD ±0.1mm, Avg Thickness: ±10% Min Thickness: +10%/-0
Extra Service: Cutting, Machining, Polishing, Bending
Quality Control
We use the Class A raw material to guarantee our titanium tubes quality. Shaving and boring to control the surface. NDT test (Hydrostatic, Pneumatic, E.T. U.T) to make sure each tube without crack and defect.
Packing Details
Each tube packed by plastic bag and all tubes in strong wooden case. Once the tubes longer than 6 meters. We consider the wooden case with steel frame to protect safe when delivering.
We stock some size of titanium seamless tube in stock for fast deliver and small order requirement. We can custom-made when order more than 50KG.
How We Work
Should you have special requirements of titanium tubes or any question you have. Please send us an email or give us a call to discuss the details with our representative.
After analyzing your requirement details, we will present you with the final offer.
We also offer free samples on request. We guarantee to provide the moderate price and good quality titanium products.
